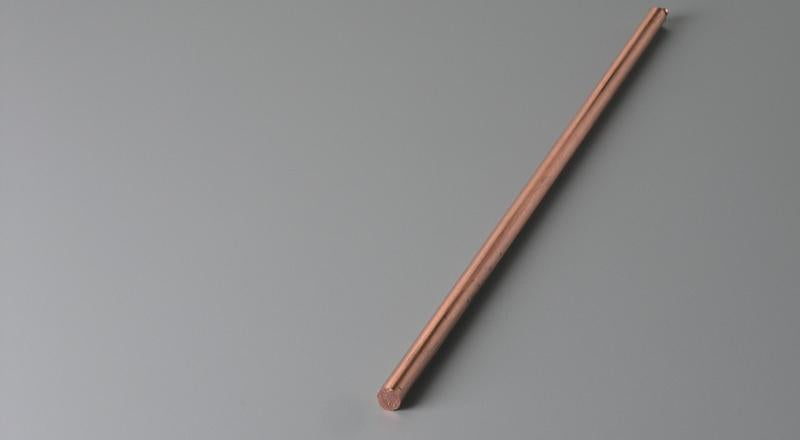

110 Copper Round Bar

110 Copper Round Bar

110 copper round bar is a versatile and highly valued form of copper alloy in industrial applications. Composed of 99.9% copper with minimal impurities, it offers exceptional electrical and thermal conductivity, making it ideal for electrical components and heat exchangers. This particular alloy combines excellent corrosion resistance with good machinability, allowing for precise fabrication into various components. 110 copper round bars are commonly used in electrical busbars, plumbing fixtures, architectural elements, and numerous manufacturing applications where conductivity and corrosion resistance are essential. Their bright, distinctive appearance and ability to be easily soldered and brazed further enhance their utility across multiple industries.

View full details

Get A Quote

Alloy ASTM Characteristics
110 ASTM B187

Electrical conductors and busbars in power systems

Heat exchangers and cooling components

Plumbing fixtures and water supply systems

CHEMICAL COMPOSITION

  • 110 copper round bar consists of 99.9% copper with minimal oxygen content (0.04%), making it an exceptionally pure copper product. This high purity contributes to its outstanding electrical and thermal conductivity properties.

MECHANICAL INFORMATION

  • With impressive mechanical characteristics including a density of 8.94 g/cc, ultimate tensile strength of 320 MPa, and yield strength of 280 MPa, this H04 temper material offers excellent performance in demanding applications. Its melting point ranges from 1,070 to 1,080°C, and it features a Rockwell hardness of B45.

AVAILABLE SIZES

  • The product is available in various diameters ranging from 1/8" to 2", all in standard 144" lengths. Weight per foot varies significantly based on diameter, from just 0.048 lbs/ft for 1/8" bar to 12.180 lbs/ft for 2" bar, providing options for diverse industrial applications.
