Introduction: Understanding Metric Tubing Standards

What is Stainless Steel Metric Tubing?

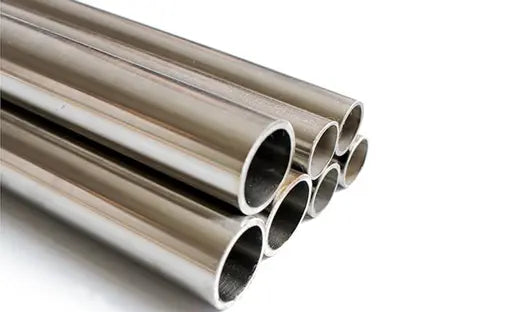

Stainless steel metric tubing measures diameters and thickness in millimeters. These tubes serve critical roles in many industries worldwide. Popular grades like 304L and 316L give users excellent protection against rust and strong mechanical properties, which make them ideal for tough working conditions. These materials stay clean and safe over years of use.

Why Do Exact Measurements Matter?

Even tiny changes in tube size can cause big problems. A perfect fit between tubes and connectors keeps systems running safely and efficiently. When tubes don't match their required sizes, systems can leak or fail.

What This Guide Covers

We'll walk you through everything you need to know about stainless steel metric tubing. This guide breaks down all the key details about tube types and how they're made. You'll learn what makes a good tube and how to pick the right one. The information here will help you make smart choices for your projects.

Understanding Stainless Steel Metric Tubing Basics

Metric vs. Imperial Tubing

Metric tubing uses millimeters for all measurements. These measurements help workers around the world communicate better when working with tubes. The inch-based imperial system can be harder to work with when doing math. Metric sizes make it easier for people to build things that fit together perfectly across different countries.

Common Steel Types for Metric Tubing

Type 304 is a strong steel that doesn't rust easily. It works great in places that make food and in buildings. Type 316 has special metals added to make it even stronger against salt water and harsh chemicals. These two types are the most popular choices for metric tubes worldwide.

How Metric Tubes Are Made

Making seamless tubes requires pushing hot metal through special tools. This process gives us tubes that can handle very high pressure and are the same thickness all around. The other way is to roll flat metal and weld it into a tube shape, which costs less money but might not be as strong. Buyers need to think about how they'll use the tubes before picking which type to buy.

The Role of Stainless Steel Tube Sizes

Understanding Size Limits

The size limits tell us how much a steel tube can differ from perfect measurements. This is important for making sure tubes work right when we use them in real projects. The wrong size, even by a tiny bit, can cause big problems when tubes need to fit together.

Why These Limits Matter

Small changes in size can make tubes leak or break. I once saw a whole system fail because one tube was too small by just a tiny amount. Getting the right tube size keeps workers safe and saves money by making sure everything fits the first time.

Main Types of Size Limits

• Outside Width: Must stay within a tiny range to work with connectors. This rule helps avoid small leaks that could become big problems.

• Wall Thickness: Has to be just right, not too thick or thin. The thickness helps the tube handle pressure without breaking.

• Straightness: Tubes need to be straight enough to install correctly. A bent tube can cause many problems during setup.

• Length: Must be cut to the right size. If tubes are too long or short, they won't fit where they should.

Decoding Metric Stainless Steel Tube Tolerance Standards

The Landscape of Standards: ISO, EN, ASTM

Standards around the world set rules for stainless steel metric tube measurements. Many groups like ISO, EN, and ASTM work to make sure tubes are made the same way everywhere. These standards help both the people who make tubes and those who buy them. Checking these rules carefully helps engineers make sure they get exactly what they need.

ISO 1127: Basic Rules for Tube Sizes

ISO 1127 tells makers how big tubes should be and how much they can vary. This common standard sets up different classes that show how precise tubes need to be. The chart below shows some examples:

Tolerance Class	OD Tolerance	WT Tolerance
D1 / T1	±0.5 mm or 0.75%	±10–15% variation
D4 / T4	±0.1 mm or 0.5%	±7.5–10% variation

Always check the real numbers with your supplier's information.

European Rules for Tubes

European rules give exact details about tube measurements. The rules are very strict about how tubes should be made. These careful measurements help tubes work better in important machines and systems. The rules make sure tubes from different makers will fit together properly.

American Standards and Metric Sizes

ASTM makes rules that often use inches instead of millimeters. Many tube makers follow both ASTM and metric rules at the same time. This helps customers use tubes in different kinds of systems. Some tubes meet both American and international standards.

Reading Measurement Details

Product sheets show how much tubes can vary in size. Take time to look at all the numbers carefully. Making sure you understand these details will help you get the right tubes for your needs. Good planning starts with knowing exactly what the measurements mean.

Understanding Metric Stainless Steel Tube Standards

Basic Standards: ISO, EN, and ASTM

Different groups set the rules for stainless steel tubes worldwide. These rules make sure all tubes are made the same way, no matter where they come from. Manufacturing companies must follow strict guidelines when making these tubes. Each group has its own way of measuring tubes. Following these rules helps everyone make and use tubes that work well together.

ISO 1127: Main Rules for Metric Tubes

ISO 1127 tells makers how to build metric stainless steel tubes. This standard has all the important details about tube sizes. Companies use different classes like D1-D4 and T1-T4 to show how exact their measurements are. You can find more information at the official ISO 1127 standard. Many other standards are based on ISO 1127.

European Rules (EN)

EN rules tell makers how to make both welded and seamless tubes. The rules say tubes under 30 mm must be very precise. Special charts help people pick the right tube sizes. These charts show the differences between various measurement classes.

ASTM Standards

ASTM started with inch measurements, but now works with metric too. Many companies make tubes that follow both ASTM and European rules. It's important to check both types of measurements when buying tubes. This helps make sure you get exactly what you need.

Reading Product Information

Product sheets show how precise the measurements are for each tube. Look for numbers that show how much the size can vary. Make sure to check which rules the maker followed when making the tubes. This knowledge helps you pick the right tubes for your project. Understanding these details will save you time and money in the long run.

Common Applications & Sourcing Quality Metric Tubing

Where is Stainless Steel Metric Tubing Used?

Stainless steel metric tubing plays a key role in many industries today. Chemical and food companies need these strong tubes because they don't rust and stay clean. These special tubes must be made to exact measurements for use in car brake lines and fuel systems. The medical field puts them to work in tools that control fluids, while builders choose them because they look good and last long. Hydraulic systems cannot work without tubes that fit perfectly and don't leak.

Key Takeaways for Specifying and Using Metric Tubing

You must know how much pressure, heat, and stress your tubes will face. The thickness and outer size of tubes matter a lot for how well they work and seal. Look up standards like ISO 1127, EN 10217-7, and ASTM to check if tubes meet requirements. Better tubes cost more, so think about what you really need. The right choice now can prevent problems later on.

Sourcing High-Quality Stainless Steel Metric Tubing from Metal Zenith

We make sure all our tubes meet industry standards. Metal Zenith offers tubes that are made with great care and precision. Our selection includes many types and sizes of tubes that you can trust for your work. Talk to our experts if you need special sizes or have questions about tube measurements.

For tailored advice or a quote, please Get A Quote.



FAQs

1. What are the main differences between metric and imperial stainless steel tubing?

   • Metric tubing uses millimeter measurements while imperial uses inches
   • Metric system offers easier calculations and global compatibility
   • Metric standards are more commonly used in international trade

2. What are the most common stainless steel grades used in metric tubing?

   • Type 304L for general applications
   • Type 316L for corrosion resistance
   • Both grades offer excellent durability and rust resistance

3. How important are tolerance standards in stainless steel metric tubing?

   • Critical for ensuring proper fit and system integrity
   • Prevents leaks and system failures
   • Must meet specific ISO, EN, or ASTM requirements

4. What industries commonly use stainless steel metric tubing?

   • Chemical processing
   • Food and beverage production
   • Medical equipment manufacturing
   • Automotive systems
   • Construction projects

5. How do I choose the right stainless steel metric tubing for my project?

   • Consider pressure requirements
   • Evaluate environmental conditions
   • Check compatibility with existing systems
   • Verify compliance with relevant standards
